PN6 Underground Water Pipe 160mm , PN8 PN10 150mm HDPE Pn10 Pipe

Product Categories
Qingdao Kaishengda Industry & Trade Co., Ltd.
Contact Now

PN6 Underground Water Pipe 160mm , PN8 PN10 150mm HDPE Pn10 Pipe

Brand Name : KDS

Model Number : OEM

Place of Origin : China

MOQ : 100pc

Price : Please contact

Payment Terms : T/T, D/P, D/A, L/C

Supply Ability : 50000 Piece/Pieces per Day

Delivery Time : 5-8 work days

Packaging Details : OEM＆ODM

Length : 5.8m;6m,12m according customer's requirement

Processing Service : Cutting

Size : Customized Size

Thickness : 2-60mm

Contact Now

Products Description

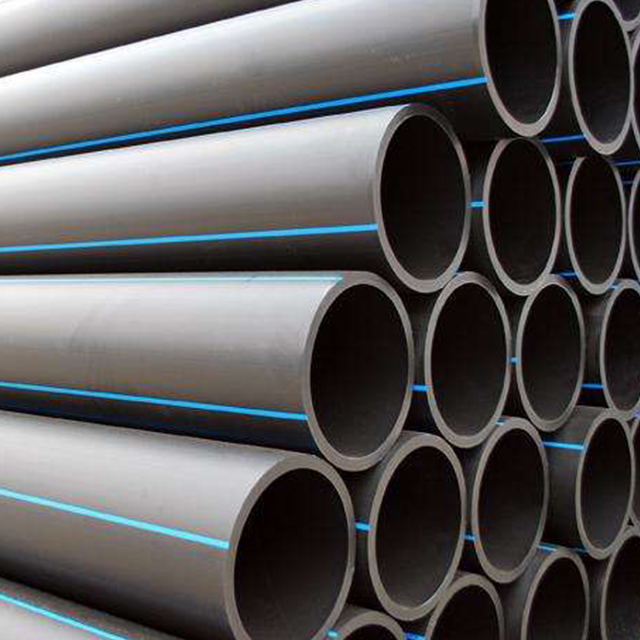

HDPE Pipe 160mm PN6/PN8/PN10 Underground Water Supply PE Pipe Manufacturer
PE/HDPE Pipes Advantage 1.Our HDPE pipe for water and sewer is manufactured for excellent performance and a long life expectancy.
2.Its butt-fused joints eliminate potential leak points, common at 10 to 20 feet with ductile iron pipe, for a zero leak rate.
3.Highly resistant to corrosion and weather, recent studies conclude it will last at least 50 years.
4.Its light weight and flexibility make it easy to install, eliminate the need for fittings required with directional changes, and make it highly suitable for use in earthquake prone areas.
5.Its high-strength walls give it the highest PE pressure rating, outstanding resistance to SCG and increased resistance to rapid crack propagation.
6.The increased working stress rating of high-performance PE resin material makes it a superior choice over steel or ductile iron pipe, especially for the large diameter pipe sizes.
Product Name
HDPE Pipe 160mm PN6/PN8/PN10 Underground Water Supply PE Pipe Manufacturer
Material
PE/HDPE
Color
Black with bule line
Standard
GB/T13663-2000,ISO 4427-1:2007
Specification
20-1200mm
Pressure
0.6MPa SDR26,0.8MPa SDR21,1MPa SDR17,1.25MPa SDR 13.6,1.6MPa SDR 11
Main application
Water Supplying and Draining
OEM and ODM
YES
More Details
Contact Us For More Information
Pressure
PN0.6MPa SDR 26
PN0.8MPa SDR 21
PN1.0MPa SDR 17
PN1.25MPa SDR 13.6
PN1.6MPa SDR 11
OD
Thickness
Thickness
Thickness
Thickness
Thickness
(mm)
(mm)
(mm)
(mm)
(mm)
(mm)
63
3.7
4.7
5.8
75
4.5
5.6
6.8
90
4.3
5.4
6.7
8.2
110
4.2
5.3
6.6
8.1
10
125
4.8
6
7.4
9.2
11.4
140
5.4
6.7
8.3
10.3
12.7
160
6.2
7.7
9.5
11.8
14.6
180
6.9
8.6
10.7
13.3
16.4
200
7.7
9.6
11.9
14.7
18.2
225
8.6
10.8
13.4
16.6
20.5
250
9.6
11.9
14.8
18.4
22.7
280
10.7
13.4
16.6
20.6
25.4
315
12.1
15
18.7
23.2
28.6
355
13.6
16.9
21.1
26.1
32.2
400
15.3
19.1
23.7
29.4
36.3
450
17.2
21.5
26.7
33.1
40.9
500
19.1
23.9
29.7
36.8
45.4
560
21.4
26.7
33.2
41.2
50.8
630
24.1
30
37.4
46.3
57.2
710
27.2
33.9
42.1
52.2
800
30.6
38.1
47.4
58.8
900
34.4
42.9
53.3
1000
38.2
47.7
59.3
1200
45.9
57.2
